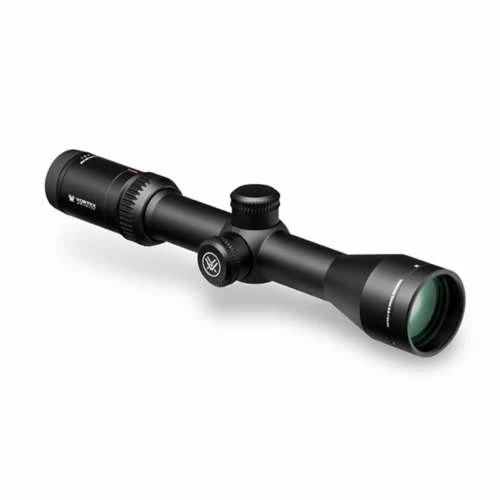

Scopes Vortex Viper HS 2.5-10X44 V-Plex Riflescope

Vortex Viper HS riflescopes offer hunters and shooters an array of features sure to be well received. The advanced optical system, highlighted with a 4x zoom range, provides magnification versatility. A forgiving eye box with increased eye relief gets shooters on target quickly and easily. Built on an ultra-strong 30mm one-piece machined aluminum tube, the Viper HS delivers increased windage and elevation travel for optimal adjustment.

Features:

OPTICAL FEATURES
XD™ Lens Elements	Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR™ Fully Multi-Coated	Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle	Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

CONSTRUCTION FEATURES
Tube Size	30 mm diameter.
Single-Piece Tube	Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum	Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof	O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof	Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof	Rugged construction withstands recoil and impact.
Hard Anodized Finish	Highly durable low-glare matte finish helps camouflage the shooter’s position.
ArmorTek	Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Capped Reset Turrets	Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for turret.

INTERNAL MECHANISM DESIGN FEATURES
Precision-Force Spring System	Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System	Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

CONVENIENCE FEATURES
MAG-View Fiber Optic	Provides a highly visible reference point for the magnification setting.
Fast Focus Eyepiece	Allows quick and easy reticle focusing.

Specifications:

Magnification	2.5-10 x
Objective Lens Diameter	44 mm
Eye Relief	4.0 inches
Field of View	47-10.9 feet/100 yards
Tube Size	30 mm
Turret Style	Capped
Adjustment Graduation	1/4 MOA
Travel per Rotation	12 MOA
Max Elevation Adjustment	86 MOA
Max Windage Adjustment	86 MOA
Parallax Setting	100 yards
Length	12 inches
Weight	16.5 ounces

Dimensions:

LENGTHS
L1	L2	L3	L4	L5	L6
12.0	2.0	2.2	5.6	2.8	3.6

HEIGHTS
H1	H2
2.03	1.63
